Deep groove ball bearings

Inner Diameter: 150-1400mm
Outer Diameter: 190-1700mm
Weight: 1.15-615kg

Features
Technical data

Deep groove ball bearings are commonly used in a number of applications as their simple structures and convenient using. They mainly carry radial loads, but also can carry combined loads as same as angular contact ball bearings when the radial clearance increases. They may carry pure axial loads when the speed is high and thrust ball bearings are not suitable. Comparing with other bearings, deep groove ball bearings have lower friction coefficient and higher limiting speed, but can not carry heavy loads.

Deep groove ball bearings commonly adopt ribbon steel pressed cages, and metal machined solid cages are often for large-size deep groove ball bearings.

Deep groove ball bearings are widely used in automotives, tractors, machine tools, generators, water-pumps,agriculture machinery, textile machinery,etc.

Inner Diameter: 150-1400mm

Outer Diameter: 190-1700mm

Weight: 1.15-615kg

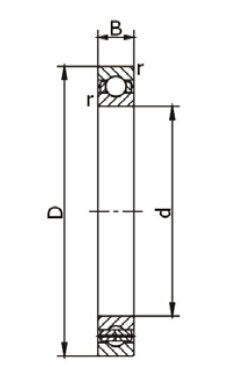

BounDary dimension				Basic load ratings		Designations		Mass	installation dimension			Limiting speeds
mm				kN		Designations		Mass	mm			r/min
d	D	B	rmin	Cr	Cor	Current	Original	kg	damin	Damax	ramax	Grease	Oil
150	190	20	1.1	49.1	58.5	6830	1000830	1.15	156.6	183.5	1	3000	3600
	210	28	2	85	90.5	6930	1000930H	2.59	159	201	2	2800	3400
	225	24	1.1	91.9	98.5	16030	7000130	3.62	156.5	218.5	1	2600	3000
	225	35	2.1	132	125	6030	130	4.24	161	214	2	2600	3000
	270	45	3	203	199	6230	230	10	163	257	2.5	1900	2500
	320	65	4	288	295	6330	330	22.7	166	304	3	1800	2300
160	200	20	1.1	48.5	61	6832	1000832	1.23	166.5	193.5	1	2800	3400
	220	28	2	87	96	6932	1000932H	2.71	169	211	2	2600	3200
	240	25	1.5	99	108	16032	7000132	4.2	168	232	1.5	2400	3000
	240	38	2.1	145	138	6032	132	5.15	171	229	2	2400	3000
	290	48	3	215	218	6232	232H	14.5	173	277	2.5	1900	2400
	340	68	4	313	340	6332	332	29	176	324	3	1800	2200
170	215	22	1.1	61.5	78	6834	1000834	1.9	176.5	208.5	1	2600	3200
	230	28	2	88.8	100	6934	1000934	2.85	179	221	2	2400	3000
	260	28	1.5	118	130	16034	7000134	5.71	178	252	1.5	2200	2800
	260	42	2.1	170	170	6034	134	6.89	181	249	2	2200	2800
	310	52	4	245	260	6234	234	15.8	186	294	3	1900	2400
	360	72	4	335	378	6334	334	36.6	286	344	3	1700	2000
180	225	22	1.1	62.3	78.5	6836	1000836	1.72	186.5	218.5	1	2400	3000
	250	33	2	119	133	6936	1000936H	4.16	189	241	2	2200	2800
	260	34	2	140	147	61936X3	736	6.1				2100	2700
	280	31	2	145	157	16036	7000136	7.5	189	271	2	2000	2600
	280	46	2.1	188	198	6036	136	8.88	191	269	2	2000	2600
	320	52	4	262	285	6236	236	15.9	196	304	3	1800	2200
	380	75	4	355	405	6336	336	43.1	196	364	2	1600	2000

BounDary dimension				Basic load ratings		Designations		Mass	installation dimension			Limiting speeds
mm				kN		Designations		Mass	mm			r/min
d	D	B	rmin	Cr	Cor	Current	Original	kg	damin	Damax	ramax	Grease	Oil
190	240	24	1.5	75.1	93.5	6838	1000838H	2.53	198	232	1.5	2200	2800
	260	33	2	117	133	6938	1000938H	5.18	199	251	2	2200	2800
	290	31	2	149	168	16038	7000138	7.78	199	281	2	2000	2600
	290	46	2.1	188	201	6038	138K1	9.39	201	279	2	2000	2600
	340	55	4	285	322	6238	238	22.3	206	324	3	1700	2000
	400	78	5	355	415	6338	338	49.7	210	380	4	1600	1900
200	250	24	1.5	74	98	6840	1000840H	2.67	208	242	1.5	2200	2800
	280	38	2.1	149	168	6940	1000940H	7.28	211	269	2	2000	2600
	310	34	2	167	191	16040	7000140	10	209	301	2	1900	2400
	310	51	2.1	207	226	6040	140	12	211	299	2	1900	2400
	360	58	4	288	332	6240	240	26.7	216	344	3	1700	2000
	420	80	5	380	445	6340	340	55.3	220	400	4	1500	1800
220	270	24	1.5	76.5	97.8	6844	1000844H	2.9	228	262	1.5	1900	2400
	300	38	2.1	152	178	6944	1000944	7.88	231	289	2	1900	2400
	340	37	2.1	180	217	16044	7000144	13.1	231	329	2	1800	2200
	340	56	3	252	268	6044	144	18.6	233	327	2.5	1800	2200
	400	65	4	355	365	6244	244	37.4	236	384	3	1500	1800
	460	88	5	410	520	6344	344	73.9	240	440	4	1300	1600
240	300	28	2	83.5	108	6848	1000848	4.48	249	291	2	1800	2200
	320	38	2.1	154	190	61948M	1000948H	8.49	251	309	2	1800	2200
	360	37	2.1	196	243	16048	7000148	13.9	251	349	2	1700	2000
	360	56	3	270	292	6048	148	19.9	253	347	2.5	1700	2000
	440	72	4	358	467	6248	248	50.5	256	424	3	1300	1600
	500	95	5	470	625	6348	348	94.4	260	480	4	1100	1400

BounDary dimensious				Basic load ratings		Designations		Mass	installation dimension			Limiting speeds
mm				kN		Designations		Mass	mm			r/min
d	D	B	rmin	Cr	Cor	Current	Original	kg	damin	Damax	ramax	Grease	Oil
260	320	28	2	101	148	61852M	1000852H	4.84	269	311	2	1700	2000
	360	46	2.1	210	268	61952M	1000952H	14	271	349	2	1600	1900
	400	44	3	237	310	16052	7000152	21.1	273	387	2.5	1500	1800
	400	65	4	291	375	6052M	152H	29.4	276	384	3	1500	1800
	480	80	5	400	540	6252	252	67	280	460	4	1100	1400
	540	102	6	505	710	6352	352	118	284	516	5	1000	1300
280	350	33	2	133	191	61856	1000856	7.2	289	341	2	1600	1900
	380	46	2.1	209	272	61956M	1000956H	15.1	291	369	2	1500	1800
	420	44	3	243	330	16056	7000156	22.7	293	407	2.5	1400	1700
	420	65	4	300	410	6056	156	31.2	296	404	3	1400	1700
	500	80	5	400	550	6256	256	70.4	300	480	4	1100	1400
	580	108	6	570	840	6356	356	144	304	556	5	950	1200
300	360	25	2	105	166	60860X1	760	5.05				1500	1800
	380	38	2.1	166	233	61860	1000860	10.3	311	369	2	1400	1700
	420	56	3	269	370	61960M	1000960H	23.9	313	407	2.5	1300	1600
	460	50	4	285	405	16060	7000160	31.5	316	447	3	1200	1500
	460	74	4	355	500	6060	160	44.2	316	447	3	1200	1500
	540	85	5	465	670	6260	260	87.8	320	520	4	1000	1300
	620	109	7.5	593	886	6320	320	169	332	588	6	800	1000
320	400	38	2.1	168	244	61864	1000864	10.8	331	389	2	1300	1600
	440	56	3	275	392	61964	1000964	25.3	333	427	2.5	1200	1500
	480	50	4	293	430	16064	7000164	33.2	336	464	3	1100	1400

BounDary dimensious				Basic load ratings		Designations		Mass	installation dimension			Limiting speeds
mm				kN		Designations		Mass	mm			r/min
d	D	B	rmin	Cr	Cor	Current	Original	kg	damin	Damax	ramax	Grease	Oil
320	480	74	4	390	570	6064	164	46.5	336	464	3	1100	1400
	580	92	5	530	805	6264	264	111	340	560	4	950	1200
340	420	38	2.1	175	265	61868	1000868	11.5	351	409	2	1200	1500
	460	56	3	292	418	61968	1000968	26.6	353	447	2.5	1100	1400
	520	57	4	345	520	16068	7000168	45	356	507	3	1000	1300
	520	82	5	440	660	6068	168	62.3	360	500	4	1000	1300
	620	92	6	530	820	6268	268	129	364	596	5	900	1100
360	440	38	2.1	192	290	61872	1000872	11.8	371	429	2	1100	1400
	480	56	3	280	425	61972	1000972	27.9	373	467	2.5	1100	1400
	540	57	4	351	550	16072	7000172	49	376	527	3	1000	1300
	540	82	5	460	720	6072	172	65.3	380	520	4	1000	1300
	550	85	5	460	720	61072X3	872	72.6	380	530	4	1000	1300
	650	95	6	555	905	6272	272	145	384	626	4	750	950
380	480	46	2.1	238	375	61876	1000876	19.5	391	469	2	1000	1300
	520	44	3	256	390	16976	7000976	30.5				1000	1300
	520	65	4	325	510	61976	1000976	40	396	504	3	1000	1300
	560	57	4	377	620	16076	7000176	51				950	1200
	560	82	5	455	725	6076	176	68	404	656	5	950	1200
400	500	46	2.1	241	390	61880	1000880	20.5	411	489	2	1000	1300
	540	65	4	335	540	61980	1000980	42	416	524	3	950	1200
	600	90	5	510	825	6080	180	88.4	420	580	4	900	1100
420	520	46	2.1	245	410	61884	1000884	21.4	431	509	2	950	1200
	560	65	4	340	570	61984	1000984	43.6	436	544	3	900	1100
	620	90	5	530	895	6084	184	92.2	440	600	4	900	1100
440	540	46	2.1	249	425	61888	1000888	22.3	451	529	2	900	1100
	600	74	4	395	680	61988F3	1000988	60.2	456	584	3	900	1100
	650	94	6	550	965	6088	188	106	460	630	4	850	1000

BounDary dimensious				Basic load ratings		Designations		Mass	installation dimension			Limiting speeds
mm				kN		Current	Original	kg	mm			r/min
d	D	B	rmin	Cr	Cor	Current	Original		damin	Damax	ramax	Grease	Oil
460	580	56	3	310	550	61892	1000892	34.3	473	567	2.5	900	1100
	620	74	4	405	720	61992	1000992	62.6	476	604	3	850	1000
	680	100	6	605	1080	6092	192	123	480	660	4	800	950
480	600	56	3	315	575	61896	1000896	35.4	493	587	2.5	850	1000
	650	78	5	450	815	61996	1000996	73.5	500	630	4	800	950
	700	100	6	605	1090	6096	196	127	500	680	4	750	900
500	620	56	3	320	600	618/500	10008/500	37.2	513	607	2.5	800	950
	670	78	5	460	865	619/500	10009/500	82	520	650	4	750	900
	720	100	6	630	1170	60/500	1/500	131	524	696	5	750	900
530	650	56	3	325	625	618/530	10008/530	39.8	543	637	2.5	750	900
	710	82	5	455	870	619/530	10009/530	89.8	550	690	4	750	900
	780	112	6	680	1300	60/530	1/530	184	554	756	5	700	850
560	680	56	3	330	650	618/560	10008/560	41.5	573	667	2.5	700	850
	750	85	5	525	1040	619/560	10009/560	105	580	730	4	670	800
600	730	60	3	355	735	618/600	10008/600	50.9	613	717	2.5	670	800
	800	90	5	550	1160	619/600	10009/600	120	620	780	4	630	750
	870	118	6	790	1640	60/600	1/600	236	624	846	5	600	700
630	780	69	4	420	890	618/630	10008/630	71.3	646	767	3	630	750
	850	100	6	625	1350	619/630	10009/630	163	654	826	5	600	700
	920	128	7.5	750	1620	60/630N1	1/630K	285	662	888	6	560	670
670	820	69	4	435	965	618/670	10008/670	75.4	686	807	3	560	670
	900	103	6	675	1460	619/670	10009/670	181	694	876	5	530	630
	980	136	7.5	765	1730	60/670	1/670	351	702	948	6	500	600
710	870	74	4	480	1100	618/710	10008/710	92.6	726	854	3	530	630
	950	106	6	715	1640	619/710	10009/710	220	734	926	5	500	600
	1030	140	7.5	1020	2310	60/710	1/710	386	742	998	6	480	560

BounDary dimensious				Basic load ratings		Designations		Mass	installation dimension			Limiting speeds
mm				kN		Designations		Mass	mm			r/min
D	D	B	rmin	Cr	Cor	Current	Original	kg	damin	Damax	ramax	Grease	Oil
750	920	78	5	525	1260	618/750	10008/750	110	770	900	4	500	600
	1000	112	6	785	1840	619/750	10009/750	245	774	976	5	480	560
	1090	150	7.5	995	2360	60/750	1/750	485	782	1058	6	450	530
800	980	82	5	530	1310	618/800	10008/800	132	820	960	4	450	530
	1060	115	6	825	2050	619/800	10009/800	275	824	1036	5	430	500
850	1150	110	10	1270	3860	618/850X3	3707/850	140	904	1096	10	430	500
900	1090	85	5	618	1532	618/900	10008/900	160	920	1070	4	380	450
1000	1220	100	6	637	1250	618/1000	10008/1000	245	1024	1196	5	340	400
1060	1280	100	6	728	1500	618/1060	10008/1060	260	1084	1256	5	300	360
1120	1360	106	6	765	1960	618/1120	10008/1120	315	1144	1336	5	-	-
1140	1380	106	6	858	2390	618/1140	10008/1140	324				-	-
1180	1420	106	6	792	2210	618/1180	10008/1180	342	1204	1396	5	260	320
1250	1500	112	3	927	2670	618/1250	10008/1250	178	1274	1476	5
1320	1600	122	6	956	2350	618/1320	10008/1320	500	1344	1576	5	190	240
1400	1700	132	7.5	1120	2750	618/1400	10008/1400	615	1432	1688	6	190	240
